Electric Units
Manufactured in the UK since 1970
High & Ultra high pressure electric water jetting units
Our range of electric water jetting units operate at pressures from 500 to 2800bar & flow rates to 207lpm (54.9gpm) with ratings up to 535hp (400kw). Do you need a diesel driven unit? Check out our diesel water jetting units page to view our full range
Every unit is built in our factory in West Sussex and tested for three hours where numerous functions are monitored and recorded.
Our units are used for a variety of different applications including surface cleaning, descaling, heat exchanger /pipe cleaning, vessel cleaning, subsea cleaning and more.
Features
- Solid ceramic or carbide plungers
- Burst disc assembly or safety valve
- IE3, foot mount, 4 pole electric motor. IP55, Class F insulation, Class B rise, TEFC. Fitted with PTC thermistors. Suitable for 400v/3ph/50Hx & 480v/3ph/60Hz.
- Stainless steel water tank
- Pump switches for low inlet pressure, low oil pressure and high oil temperature
- Manual pressure adjusting valve
- Certified Crashframes
- Star delta control panel c/w interlocked isolator, start/stop buttons, hours counter, shutdown circuit for pump switches & E-stop. PILZ safety relay and terminals for a remote E-stop. Mounted in a coated sheet steel enclosure with a IP65 rating.
- ATEX zone 1 or 2 electric motors and starter panels
High Pressure

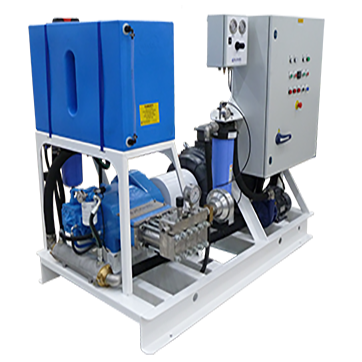

HP40 EC
Crashframe Unit
Maximum Power
40HP
30kW
Maximum Pressure
1000bar
at 16lpm
14,500psi at 4.3gpm
Maximum Flowrate
27lpm
at 600bar
7.1gpm at 8,700psi
HP65 EC
Crashframe Unit
Maximum Power
65HP
48kW
Maximum Pressure
1000bar
at 23lpm
14,500psi at 6gpm
Maximum Flowrate
34lpm
at 650bar
8.9gpm at 9,425psi
HP120 EC
Crashframe Unit
Maximum Power
120HP
90kW
Maximum Pressure
1400bar
at 30lpm
20,300psi at 8gpm
Maximum Flowrate
44lpm
at 1100bar
11.7gpm at 15,950psi
HP220 EC
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16.4gpm
Maximum Flowrate
83lpm
at 1000bar
21.9gpm at 14,500psi
HP300 EC
Crashframe Unit
Maximum Power
300HP
225kW
Maximum Pressure
1400bar
at 77lpm
20,300psi at 20.5gpm
Maximum Flowrate
124lpm
at 1000bar
32.9gpm at 14,500psi
HP500 EC
Crashframe Unit
Maximum Power
500HP
375kW
Maximum Pressure
1400bar
at 129lpm
20,300psi at 34.2gpm
Maximum Flowrate
207lpm
at 1000bar
54.9gpm at 14,500psi
Ultra High Pressure

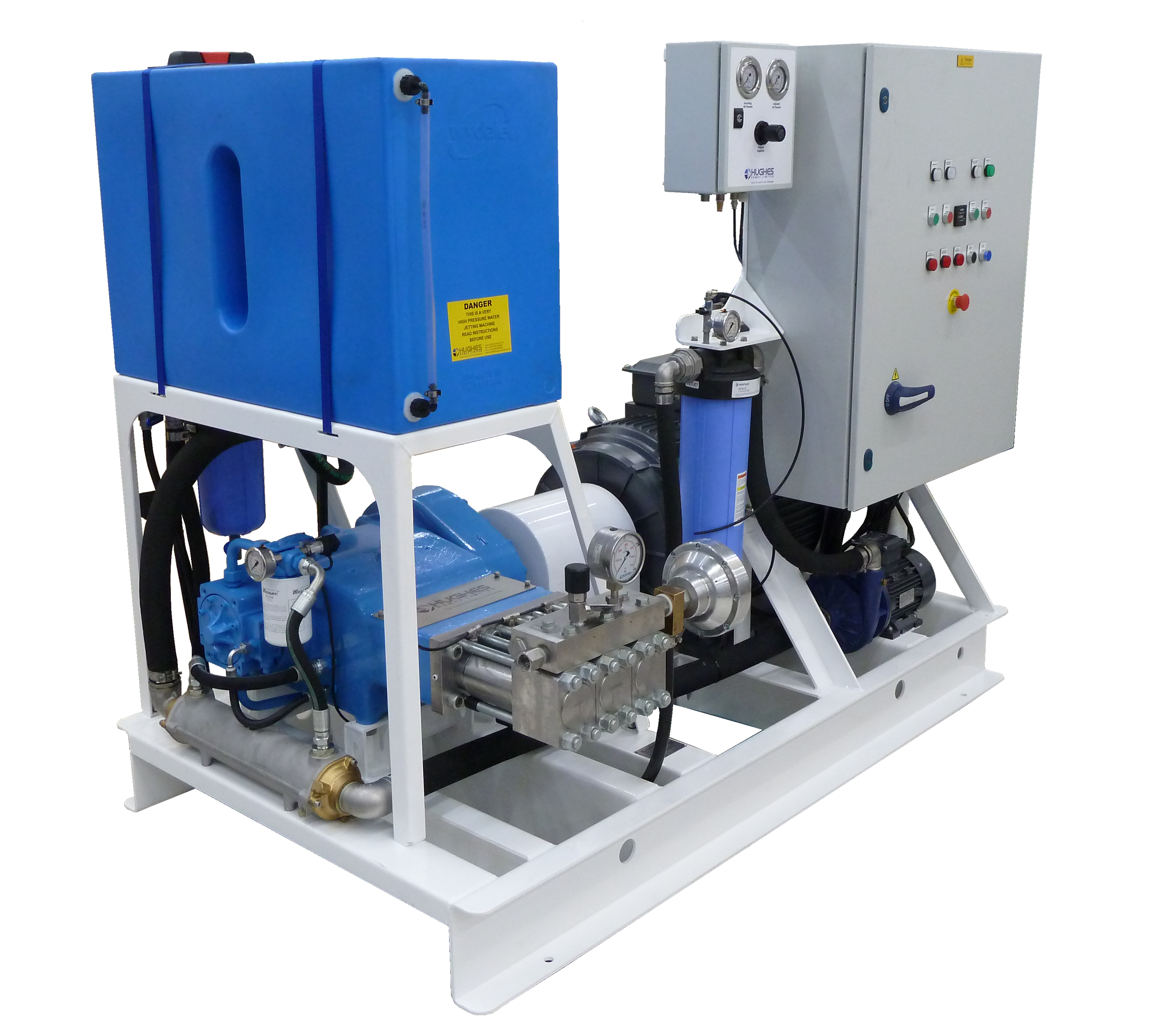

UB30 EC
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,000psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.7gpm at 29,000psi
