Diesel Units
Manufactured in the UK since 1970
High & Ultra high pressure diesel driven water jetting units
Our range of diesel water jetting units operate at pressures from 650 to 2800bar & flow rates to 199lpm (52.7gpm) with ratings up to 520hp (387kw). Do you need a diesel driven unit? Check out our electric water jetting units page to view our full range
Every unit is built in our factory in West Sussex and tested for three hours where numerous functions are monitored and recorded.
Our units are used for a variety of different applications including surface cleaning, hydro demolition, heat exchanger /pipe cleaning, vessel cleaning, subsea cleaning and more. Different Engine types are available to suit any country/region.
Features
- Stainless steel pumpheads
- Integral gearboxes
- SAE engine adaptors
- Stainless steel water tanks
- Pneumatic pressure adjusting valves
- Grit blasted fabrications
- Burst disc assemblies
- Auto-shutdown control panels
- Pump switches for low inlet pressure, low oil pressure and high oil temperature
- A engine option for all regions of the world (European and non-European)
Non-european spec – High Pressure Water Jetting Units

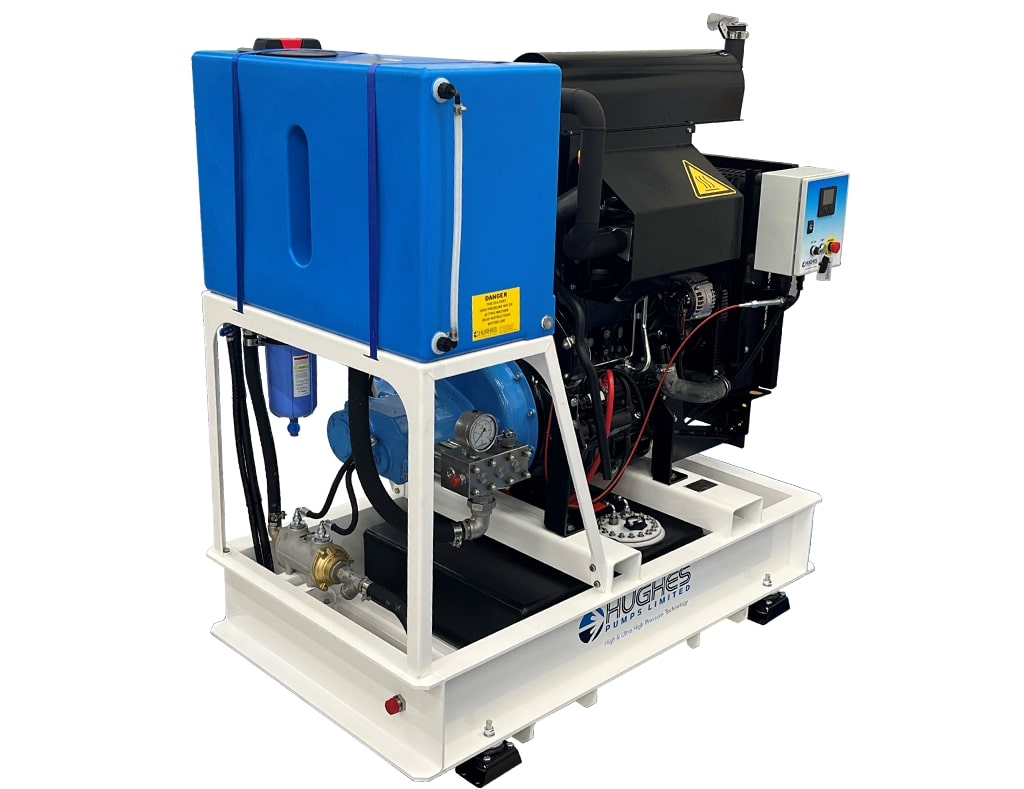

HP65 DS-B
Skid Unit
Maximum Power
Varied
Maximum Pressure
1000bar
at 25lpm
14,500psi at 6.6gpm
Maximum Flowrate
50lpm
at 500bar
13.2gpm at 7,250psi
HP65 DC
Crashframe Unit
Maximum Power
65HP
48kW
Maximum Pressure
1000bar
at 27lpm
14,500psi at 7.2gpm
Maximum Flowrate
41lpm
at 650bar
10.7gpm at 9,425psi
HP120 DS
Skid Unit
Maximum Power
120HP
90kW
Maximum Pressure
1400bar
at 35lpm
20,300psi at 9.3gpm
Maximum Flowrate
44lpm
at 1100bar
11.7gpm at 15,950psi
HP220 Subframe
Subframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 DS
Skid Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 DS-B
Skid Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 DST
Trolley Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 DC
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 DCT
Trolley Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 DRT
Trailer Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi

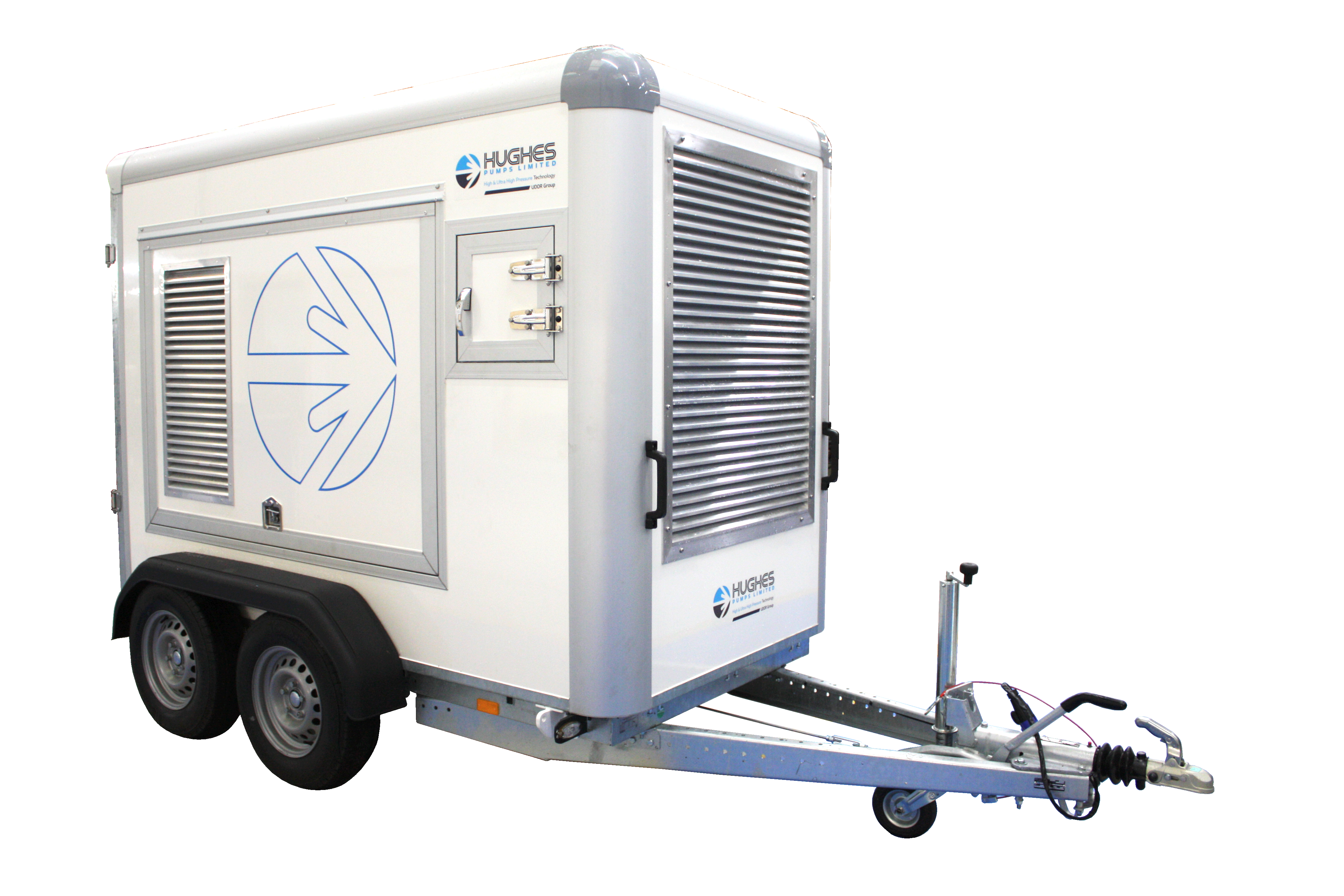

HP220 DRT Enclosed
Trailer Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 DNV Crashframe
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP220 10′ DNV Container
Container Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 62lpm
20,300psi at 16gpm
Maximum Flowrate
83lpm
at 1000bar
22gpm at 14,500psi
HP300 DC
Crashframe Unit
Maximum Power
300HP
225kW
Maximum Pressure
1400bar
at 74lpm
20,300psi at 19.7gpm
Maximum Flowrate
119lpm
at 1000bar
31.6gpm at 14,500psi
HP500 DC
Crashframe Unit
Maximum Power
500HP
375kW
Maximum Pressure
1400bar
at 124lpm
20,300psi at 32.9gpm
Maximum Flowrate
199lpm
at 1000bar
52.7gpm at 14,500psi
Non-european spec – Ultra High Pressure Water Jetting Units
Ultrabar 30 Subframe
Subframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DS
Skid Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DS-B
Skid Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DST
Trolley Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DC
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DCT
Trolley Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DRT
Trailer Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DRT Enclosed
Trailer Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DNV Crashframe
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Ultrabar 30 DNV Container
Container Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 2000bar
11.6gpm at 29,000psi
Tier 5 – High Pressure Water Jetting Units
HP65 DS-B T5
Skid Unit
Maximum Power
Varied
Maximum Pressure
1000bar
at 25lpm
14,500psi at 6.6gpm
Maximum Flowrate
50lpm
at 500bar
13.2gpm at 7,250psi
HP65 DC T5
Crashframe Unit
Maximum Power
65HP
48kW
Maximum Pressure
1000bar
at 27lpm
14,500psi at 7.2gpm
Maximum Flowrate
41lpm
at 650bar
10.7gpm at 9,425psi
HP120 DS T5
Skid Unit
Maximum Power
120HP
90kW
Maximum Pressure
1400bar
at 29lpm
20,300psi at 7.6gpm
Maximum Flowrate
40lpm
at 1000bar
10.7gpm at 14,500psi
HP220 DS-B T5
Skid Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 51lpm
20,300psi at 14gpm
Maximum Flowrate
67lpm
at 1000bar
18gpm at 14,500psi
HP220 DC T5
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 51lpm
20,300psi at 14gpm
Maximum Flowrate
67lpm
at 1000bar
18gpm at 14,500psi
HP220 DRT T5
Trailer Unit
Maximum Power
220HP
160kW
Maximum Pressure
1400bar
at 51lpm
20,300psi at 14gpm
Maximum Flowrate
67lpm
at 1000bar
18gpm at 14,500psi
HP300 DC T5
Crashframe Unit
Maximum Power
300HP
225kW
Maximum Pressure
1400bar
at 74lpm
20,300psi at 19.7gpm
Maximum Flowrate
119lpm
at 1000bar
31.6gpm at 14,500psi
HP500 DC T5
Crashframe Unit
Maximum Power
500HP
375kW
Maximum Pressure
1400bar
at 124lpm
20,300psi at 32.9gpm
Maximum Flowrate
199lpm
at 1000bar
52.7gpm at 14,500psi
Tier 5 – Ultra High Pressure Water Jetting Units

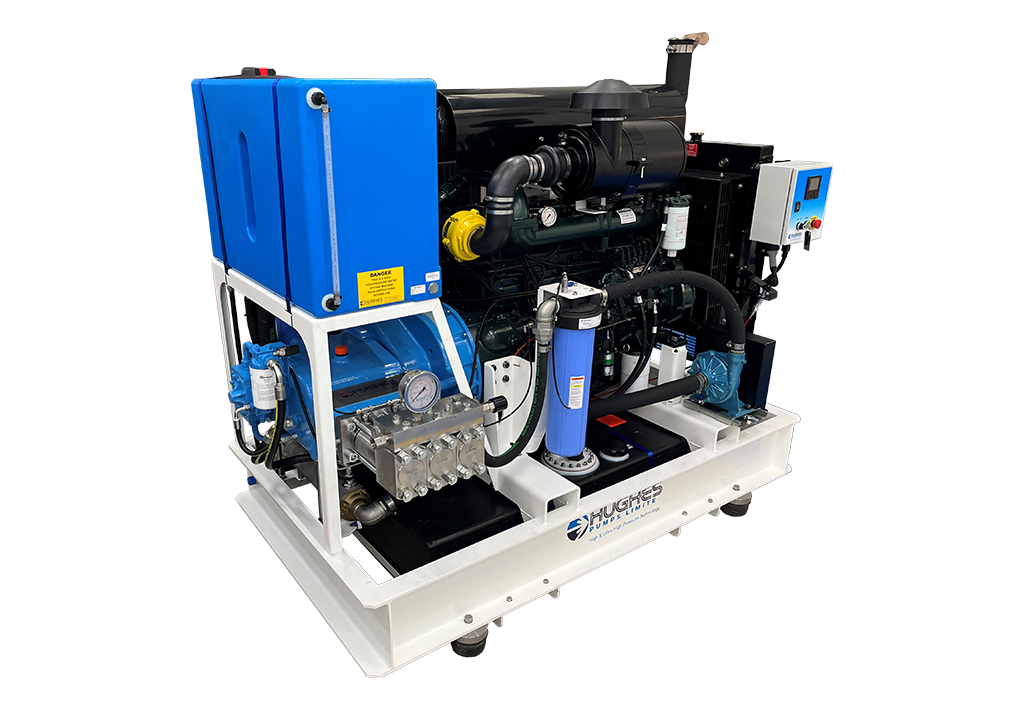

UB30 DS-B T5
Skid Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 1800bar
11.6gpm at 26,100psi
UB30 DC T5
Crashframe Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 1800bar
11.6gpm at 26,100psi
UB30 DRT T5
Trailer Unit
Maximum Power
220HP
160kW
Maximum Pressure
2800bar
at 30lpm
40,600psi at 7.9gpm
Maximum Flowrate
44lpm
at 1800bar
11.6gpm at 26,100psi
